| Brand Name : | FOR SAMSUNG |
| Model Number : | LTN140AT07 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

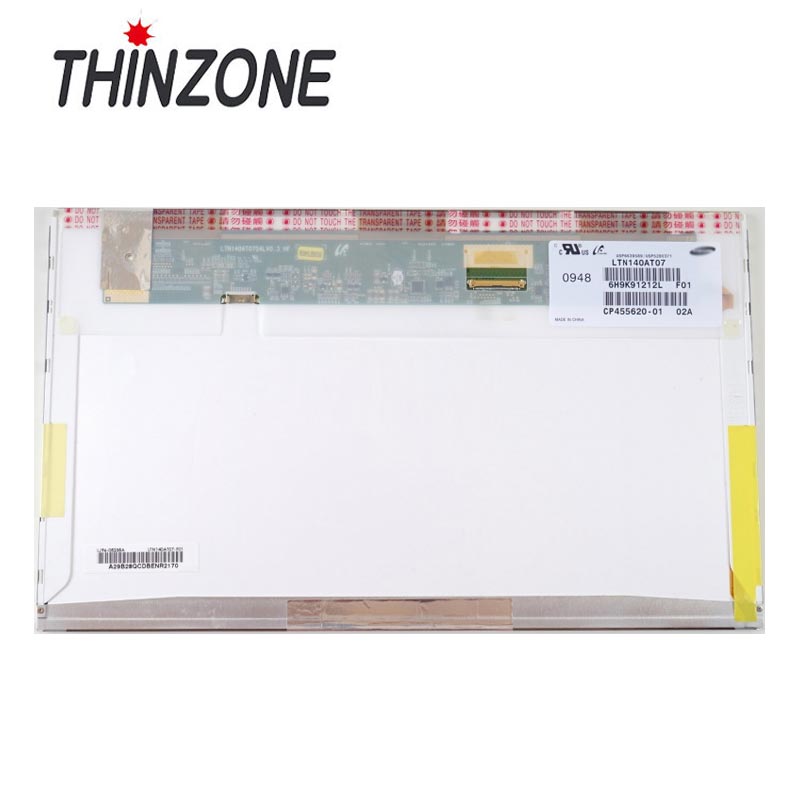

Wholesale 14.0" 1366*768 lcd display LTN140AT07 / LP140WH4-TLA1 TFT-LCD lcd laptop replacement screen
| Brand | FOR SAMSUNG |
| Diagonal Size | 14.0 inch |
| Pixel Format | 1366(RGB)×768 [WXGA] |
| Active Area | 309.399(H)×173.952(V) mm |
| Luminance | - |
| View Direction | 6 o'clock |
| Viewing Angle | 40/40/15/30 (Min.)(CR≥10) |
| Model | LTN140AT07 |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | - |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Response Time | 8 (Typ.)(Tr+Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45% NTSC |
| Form Style | - |
| Frame Rate | 60Hz |
| Interface Type | LVDS (1 ch, 6-bit) |
| Power Supply | 3.3V (Typ.) |
| Light Source | WLED |
| Designed For | / |
| Touch Panel | Without |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Direct Source /Ready Stock/Competitive Price
| 11.6" | 13.3" | 14" | 15.6" | 17.3" |
| NT116WHM-A20 | LP133WH2-SPA1 | B140XW01 V.B | NT156WHM-N50 | N173FGE-L23 |
| NT116WHM-N11 | LP133WP1 TJAA | HB140WX1-300 | LP156WHB-TLA1 | LP173WF4-SPF1 / SPF4 |
| B116XTN02.3 | LP133WX2-TLG5 | N140BGE-E43 | NT156WHM-N32 | N173HGE-L11 |
| B116XW03 V.2 | N133BGE-L41 | LP140WHB-TLA1 | LTN156AT10 | LP173WD1 TLC3 |
| N116BGE-EA2 | LP133WH2-SPB1 | B140XTN02.E | LTN156AT39 | LP173WD1-TLN1 |
| N116BGE-L42 | B133XW03 V1 | LP140WF6-SPB1 | N156B6-L0B | N173FGE-L21 |
|
|
